Housing for 4 tubular ceramic membranes Ø10 L = 600 mm in order to test 4 different MWCOs
Helicopter carter Ø 10, AISI 316L, L = 604 mm
Including :
– Naked carter (without permeat kit) 4 Ø 10 in // for 4 membranes Ø 10 L = 600 mm

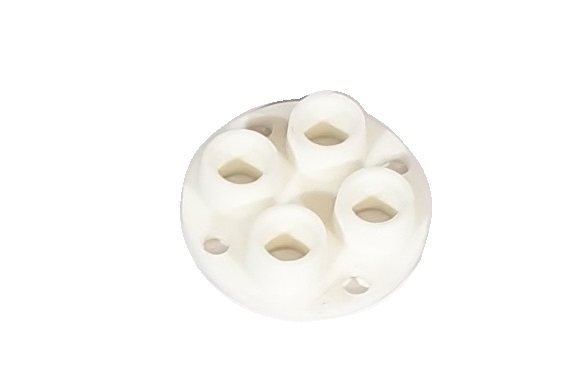

– 2 Silicone membranes’ gaskets
– 2 carter’s backplates
– Packaging box

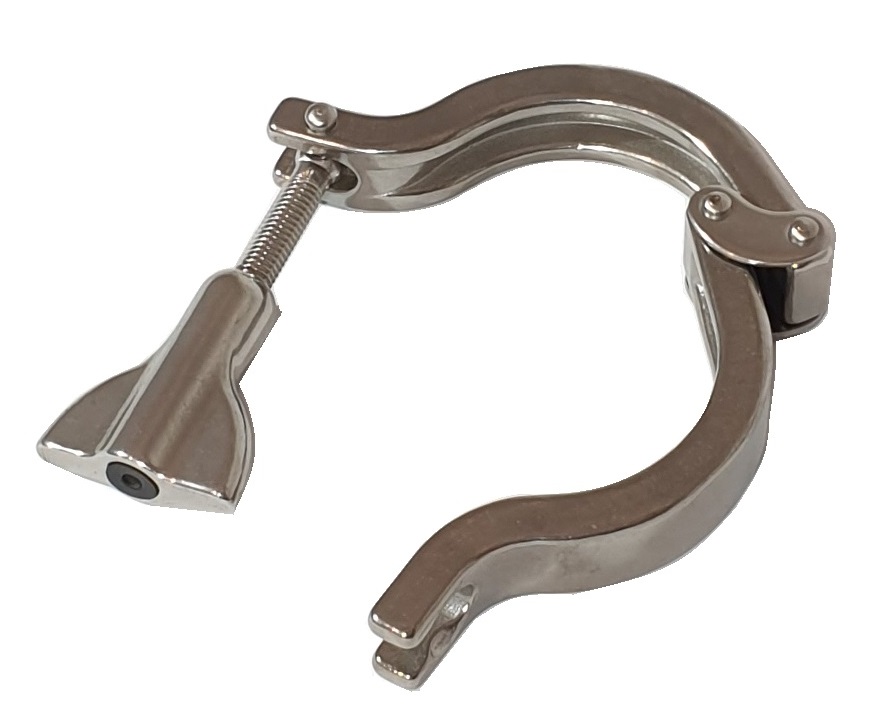

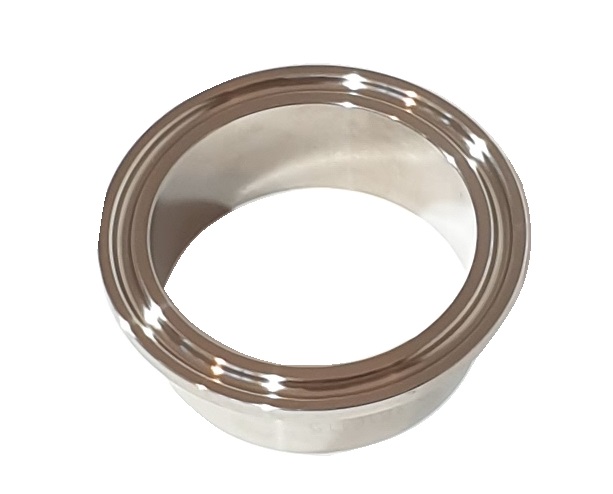

Retentate connections : clamp Ø 51
Permeate connections : micro-clamp Ø 12
For membranes see Starter Kits 1 ch or 7 ch L = 600 mm
3 175,00 €
Starter KIT INSIDE CéRAM

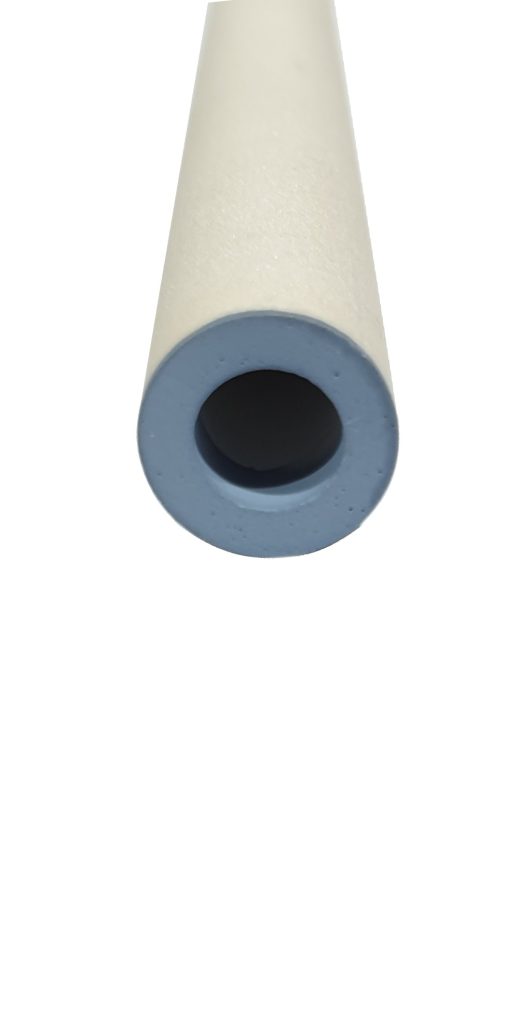

4 membranes 1 canal L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
521,00 €
Starter KIT INSIDE CéRAM

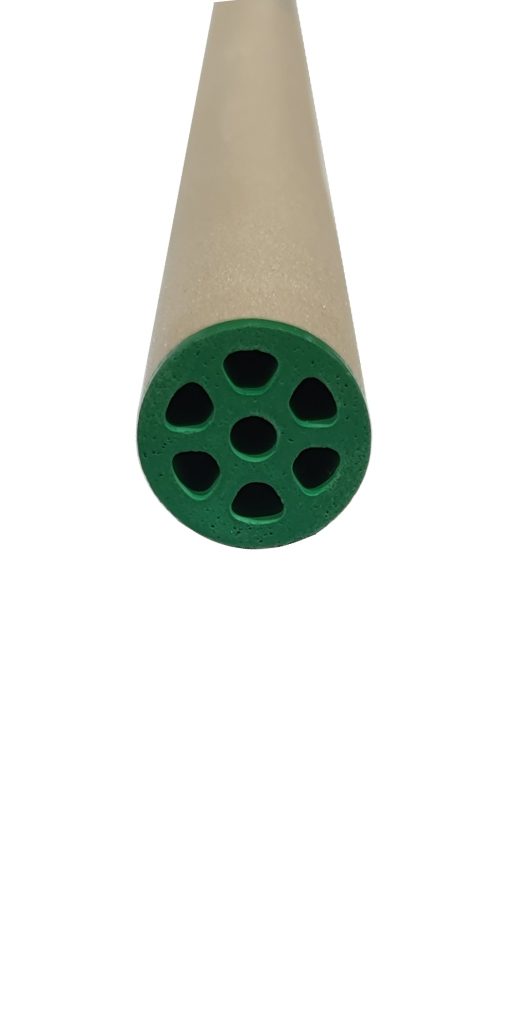

4 membranes 7 canaux L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
942,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 1 canal L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
663,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 7 canaux L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
1 194,00 €

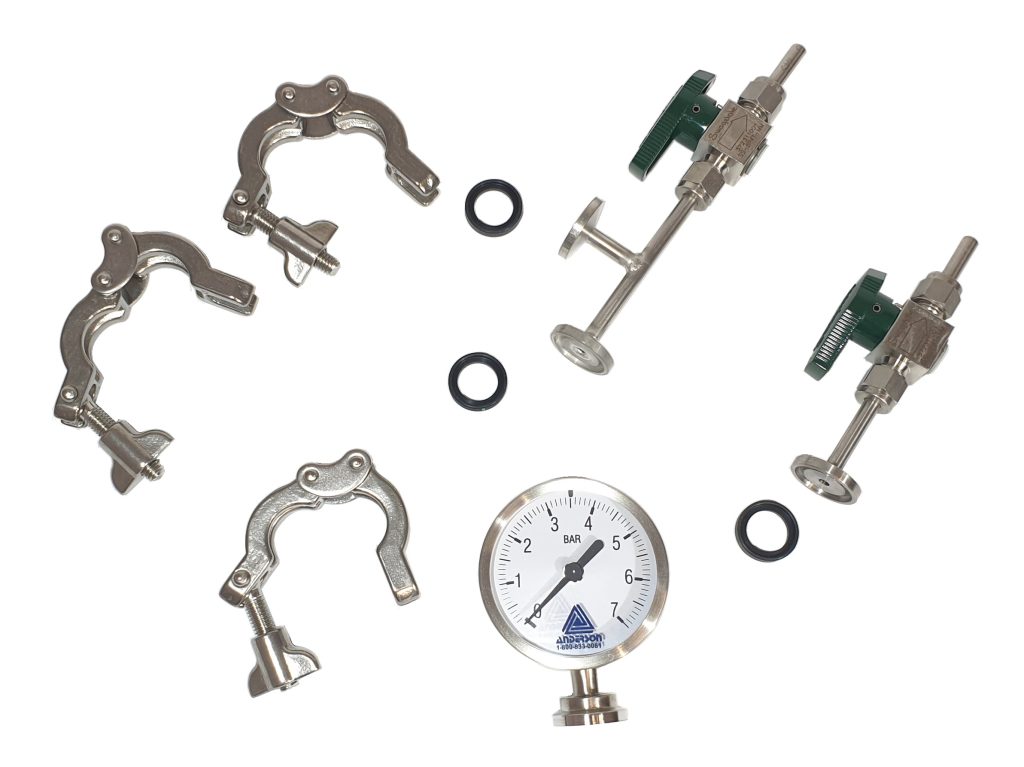

Permeate Kit for carter 4 Ø 10 in // L = 600 mm AISI 316L
including :
– 1 micro-clamp 0-7 bars pressure gauge
– 1 pipe with valve
– 1 pipe with valve and micro-clamp connection for pressure gauge

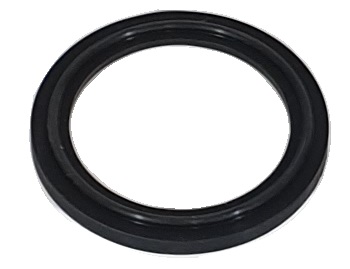

– 3 micro-clamp EPDM gaskets and collars
– Packaging
2 399,00 €
2 Permeate Kits for carter 4 Ø 10 in // L = 600 mm AISI 316L
including :
– 2 micro-clamp 0-7 bars pressure gauges
– 2 pipes with valve
– 2 pipes with valve and micro-clamp connection for pressure gauge
– 6 micro-clamp EPDM gaskets and collars
– Packaging
4 512,00 €
4 Permeate Kits for carter 4 Ø 10 in // L = 600 mm AISI 316L
including :
– 4 micro-clamp 0-7 bars pressure gauges
– 4 pipes with valve
– 4 pipes with valve and micro-clamp connection for pressure gauge
– 12 micro-clamp EPDM gaskets and collars
– Packaging
8 458,00 €
