Lab equipment to facilitate the implementation of carter and membrane Ø10 in order to obtain filtration area from 0.011 up to 0.032 m² (for membranes, see ” Ø10 Tubular ceramic membranes and housings ” or “Valisette test kit”)

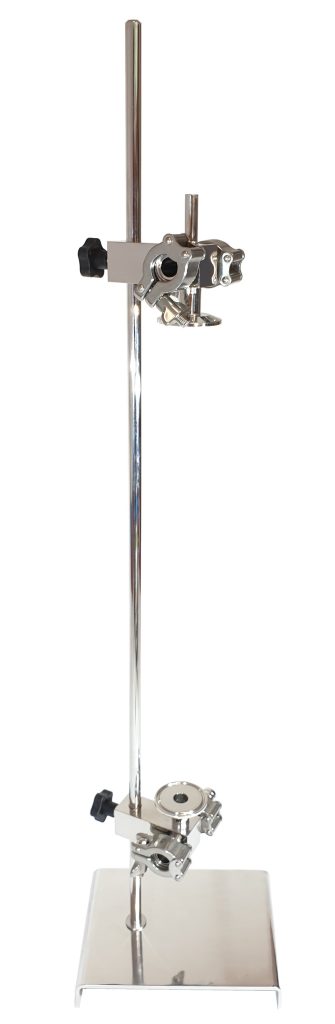

Mini-Filter Micro-clamp version for carter 25 or 60 Ø 10
Including :
– Laboratory type support
– Bottom and Top part with 3 connections
(connections per part : 1 micro-clamp connection for pressure gauge – inlet or outlet, 1 clamp connection for the carter, 1 micro-clamp connection inlet or outlet)

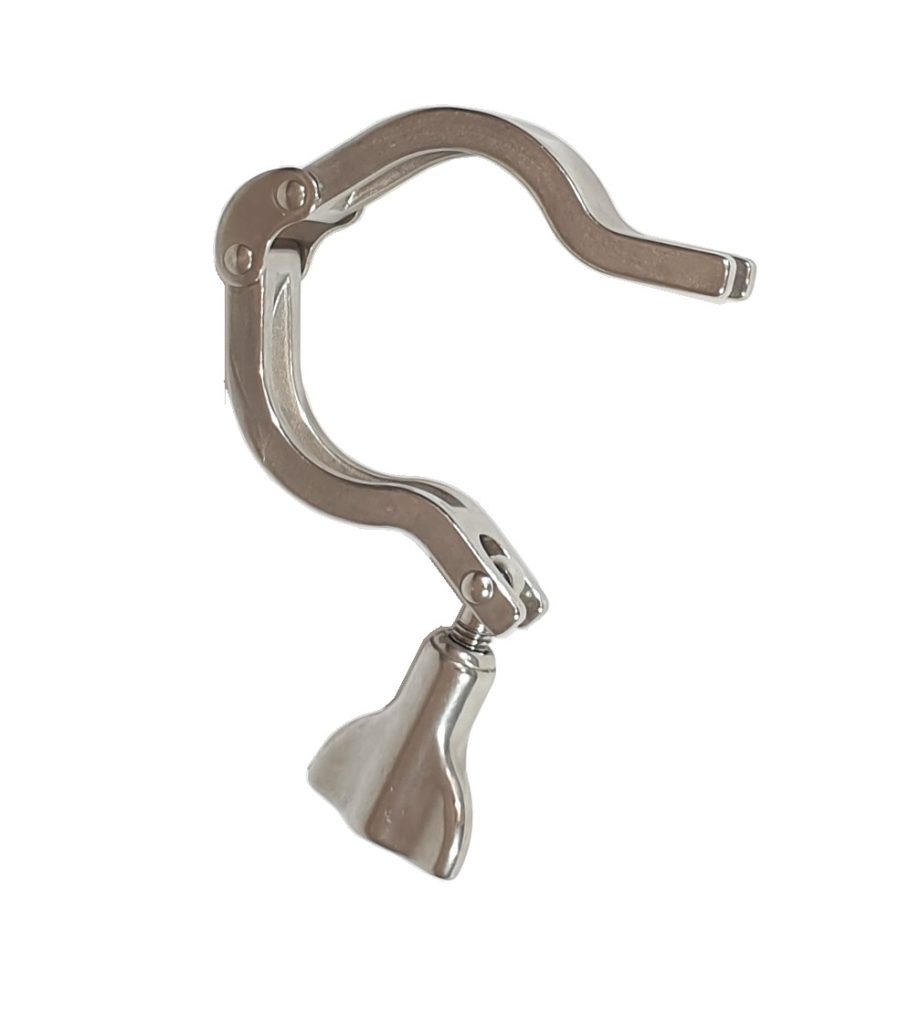

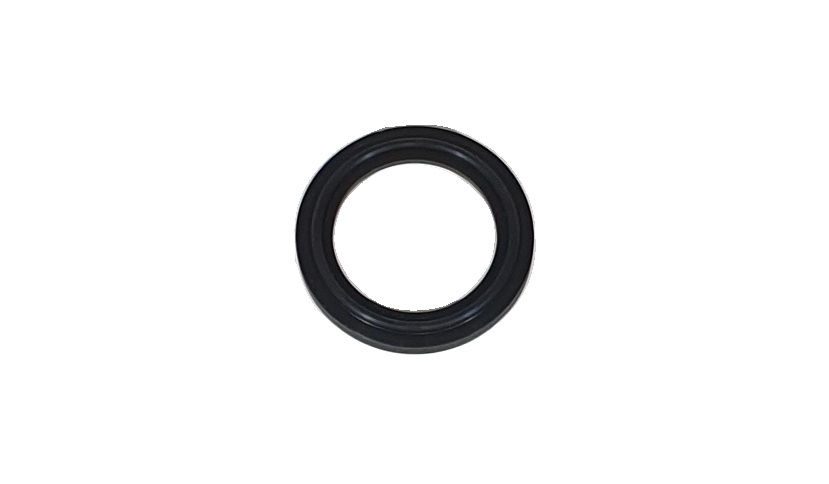

– 4 micro-clamp gaskets and collars
– 2 ribbed connections DN 17,2
– 2 micro-clamp 0-7 bars pressure gauges
– packaging
6 348,00 €

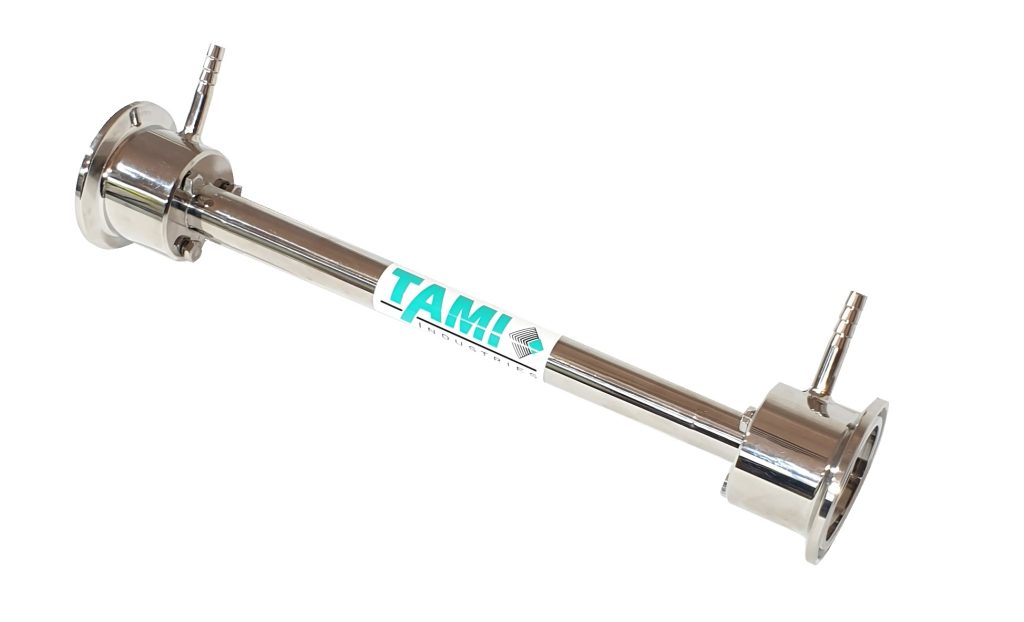

Carter 25 Ø 10, AISI 316L, EPDM version
Including :
– Cell for one membrane Ø 10 L = 250 mm
– 2 EPDM gaskets
– Packaging box cell Ø 10 mm
Retentate connections : clamp Ø 38
Permeate connections : hose shank Ø 6
953,00 €
Carter 25 Ø 10, AISI 316L, Silicone version
Including :
– Cell for one membrane Ø 10 L = 250 mm
– 2 silicone gaskets
– Packaging box cell Ø 10 mm
Retentate connections : clamp Ø 38
Permeate connections : hose shank Ø 6
953,00 €
Carter 25 Ø 10, AISI 316L, Viton version
Including :
– Cell for one membrane Ø 10 L = 250 mm
– 2 Viton gaskets
– Packaging box cell Ø 10 mm
964,00 €

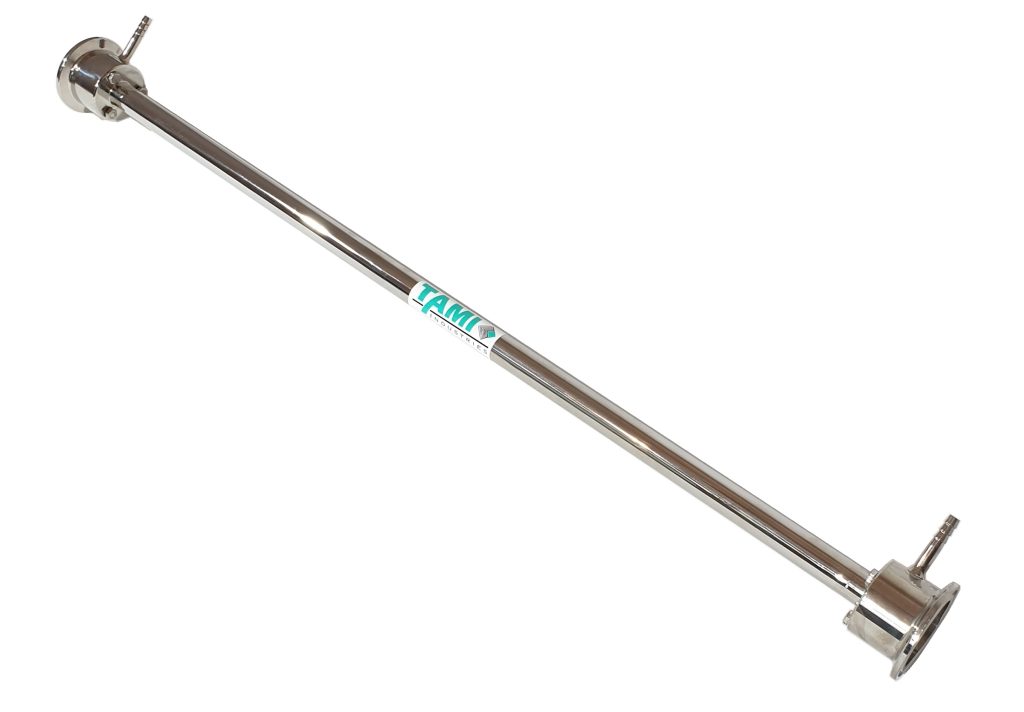

Carter 60 Ø 10, AISI 316L, EPDM version
Including :
– Cell for one membrane Ø 10 L = 600 mm
– 2 EPDM gaskets
– Packaging box cell Ø 10 mm
Retentate connections : clamp Ø 38
Permeate connections : hose shank Ø 6
1 085,00 €
Carter 60 Ø 10, AISI 316L, Silicone version
Including :
– Cell for one membrane Ø 10 L = 600 mm
– 2 silicone gaskets
– Packaging box cell Ø 10 mm
Retentate connections : clamp Ø 38
Permeate connections : hose shank Ø 6
1 085,00 €
Carter 60 Ø 10, AISI 316L, Viton version
Including :
– Cell for one membrane Ø 10 L = 600 mm
– 2 Viton gaskets
– Packaging box cell Ø 10 mm
Retentate connections : clamp Ø 38
Permeate connections : hose shank Ø 6
1 115,00 €
Starter KIT INSIDE CéRAM
4 membranes 1 canal L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
521,00 €
Starter KIT INSIDE CéRAM
4 membranes 7 canaux L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
942,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 1 canal L = 250 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
425,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 7 canaux L = 250 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
769,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 1 canal L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
663,00 €
Starter KIT FILTANIUM (Support and active layers 100 % TiO2)
4 membranes 7 canaux L = 600 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 100 Kg/mol – 50 Kg/mol – 10 Kg/mol
5 Kg/mol -1 Kg/mol
1 194,00 €
Starter KIT INSIDE CéRAM
4 membranes 1 canal L = 250 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
335,00 €
Starter KIT INSIDE CéRAM
4 membranes 7 canaux L = 250 mm à choisir parmi :
1,40 µm – 0,80 µm – 0,45 µm – 0,20 µm – 0,14 µm
300 Kg/mol – 150 Kg/mol – 50 Kg/mol – 15 Kg/mol
8 Kg/mol – 5 Kg/mol – 3 Kg/mol -1 Kg/mol
610,00 €
