Zig-Zag housing for Ø25 tubular ceramic membranes

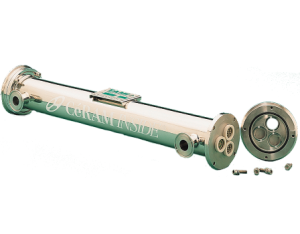

Zig-Zag housing was developed to maximize filtration surface without increasing the height of the housing and the size of the pump. It can fit three half length Ø25 tubular ceramic membranes in series and is the right solution for semi-industrial productions.

Ceramic membranes Ø 25 11 chs

Ceramic membranes Ø25 11 chs hydr. Ø 4,6 mm L = 580 mm 0.125 m²

Ceramic membranes Ø 25 23 chs

Ceramic membranes Ø25 23 chs hydr. Ø 3,5 mm L = 580 mm 0.175 m²

Ceramic membranes Ø 25 8 chs

Ceramic membranes Ø25 8 chs hydr. Ø 6 mm L = 580 mm 0.1 m²

Ceramic membranes Ø 25 filtanium 23 chs

Ceramic membranes filtanium Ø25 23 chs hydr. Ø 3,5 mm L = 580 mm 0.175 m² (support and active layers 100 % TiO2)

Ceramic membranes Ø 25 filtanium 8 chs

Ceramic membranes filtanium Ø25 8 chs hydr. Ø 6 mm L = 580 mm 0.1 m² (support and active layers 100 % TiO2)

Zig-Zag Housing

Housing for 3 half length tubular ceramic membranes Ø25 in serial, in order to obtain filtration area from 0.3 up to 0.525 m²
